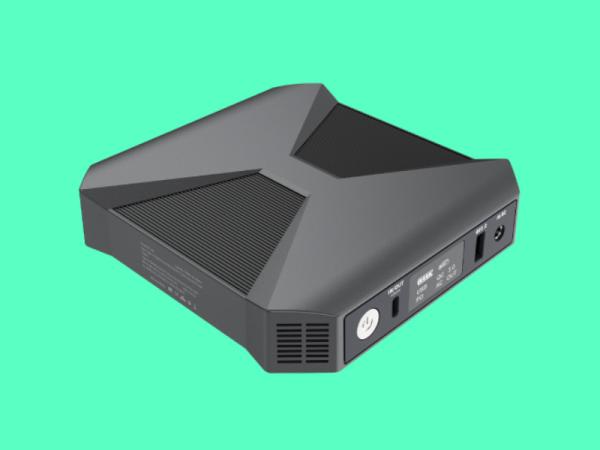

1. Description of 100W outdoor portable power station:
100W light Portable power station /portable power pack /portable
power supply /solar charge portable battery station
2. Advantages of 100W outdoor portable power station
(1) Widely Application
(2) Super strict quality control
(3) Intelligent protection
(4) Multi-mode output & input
(5) AC output voltage and frequency are customized , according to
different countries and regions.
3. Specification of 100W outdoor portable power station
| 1 input-(conversion efficiency:＞85%) | Rated Power:100W,Peak:200W |
| 1. DC | 20V/3A 60W (Bi-pass) | Li-iron NCM battrey21700(3S2P) |
| Servie and ambient temperatures | Capacity:89WH/24000mah |
Input Temp.:0~40℃(32~104℉) Output Temp.:-10~60℃(14~140℉) Storage Temp.:-20~45℃(-4~113℉) | Modify wave |
| 5 output-(conversion efficiency:＞85%) | Cycle life >1000 |
| 1. USB | 2x USB,5V/2A(Total)QC3.0 MAX 12V/1.5A | Input Temp.:0~40℃(32~104℉) Output Temp.:-10~60℃(14~140℉) Storage Temp.:-20~45℃(-4~113℉) |
| 2. AC | 1x AC ,100-120V, 220-240V/50HZ, overpower120W,Peak 200W | Product Size:156X158X32 MM Package Size:229X188X47MM N.W.:0.76KG G.W.:1.05KG |
| 3. DC | 1x DC 20V/3A 60W(Bi-pass) |
| 4. Type-C | 1x PD60W | Easy to carry. Multiple protection overload, overtemperature,
overvoltage, overcurrent, undervoltage protection, fully charged
automatic cut-off. |
| Accessory: | 1 x cable(5A TYPE-C line)+1 x manual | Normal storage: 200-300pcs; Standard lead time is 30-45 days. |
FAQ for 100W outdoor portable power station
Q: What does the 1 input and 5 output mean?
A: 1 input means there is only one ways to recharge the portable
power station, and 5 different ways to connect the portable power
station to charge our phone, laptop, camera, light, and so on.
Q: What’s the meaning of modified wave ?
A: Sine waves usually refer to inverters, which is common in the
market. Modified sine wave is a kind of waveform between sine wave
and square wave, and its output waveform is in the positive maximum
to the negative maximum with a time interval, but the waveform of
quasi-sine wave is still composed of broken lines, belonging to the
category of square wave. For the sake of unstable, so it’s not
suitable for the sensitive electrical or electronic products, such
as laptops, stereos, household equipment, laser printers, etc.
Q: What’s the meaning of pure sine wave mean?
A: Sine waves usually refer to inverters. The output wave form is
relatively stable, so it’s suitable for the sensitive electrical or
electronic products, such as laptops, stereos, household equipment,
laser printers, etc.
Q: Can I order a sample to check the quality of 1000W Portable
power station ?
A: Yes, sample order is welcomed.
Q: Do your products have any certifications?
A: Yes, We have full range of certificates, like CE, RoHs, FCC,
PSE, etc.
Q: What’s the leading time for mass order?
A: According to the quantity of the order, we will ship it for you
as soon as possible.
Q: How long is the warranty of your products?
A: We offer one year warranty since the delivery of goods
Brief introduction of Acepow Company
Fuan Acepow Equipment Co.,Ltd is founded in 1978, covers 50000㎡,
located in fuan city, fujian Province, China. We have special line
in manufacturing diesel generator set, diesel alternator, and have
the certificate of ISO9001 and ISO4001 CE, SASO, SONCAP. We have
honors of the national standard quality manufacturer, the first
executive director company of Fu 'an Power Generation Equipment
Industry Association, the National export motor Quality and safety
Demonstration company. Our main markets are Europe, America, South
Asia, Middle East, Africa and so on.
Adhering to the philosophy of “Rrespect comes from credibility,
Details determine the quality”, we developed energy storage
department with brand Aceday,and cooperated with the experienced
team of more than 300 persons, and of professional battery, cell
and laboratory R&D, we developed AH, AF, AB, AC, AL, ADS
series.
Believe that Acepow will become your best energy storage battery
supplier!
