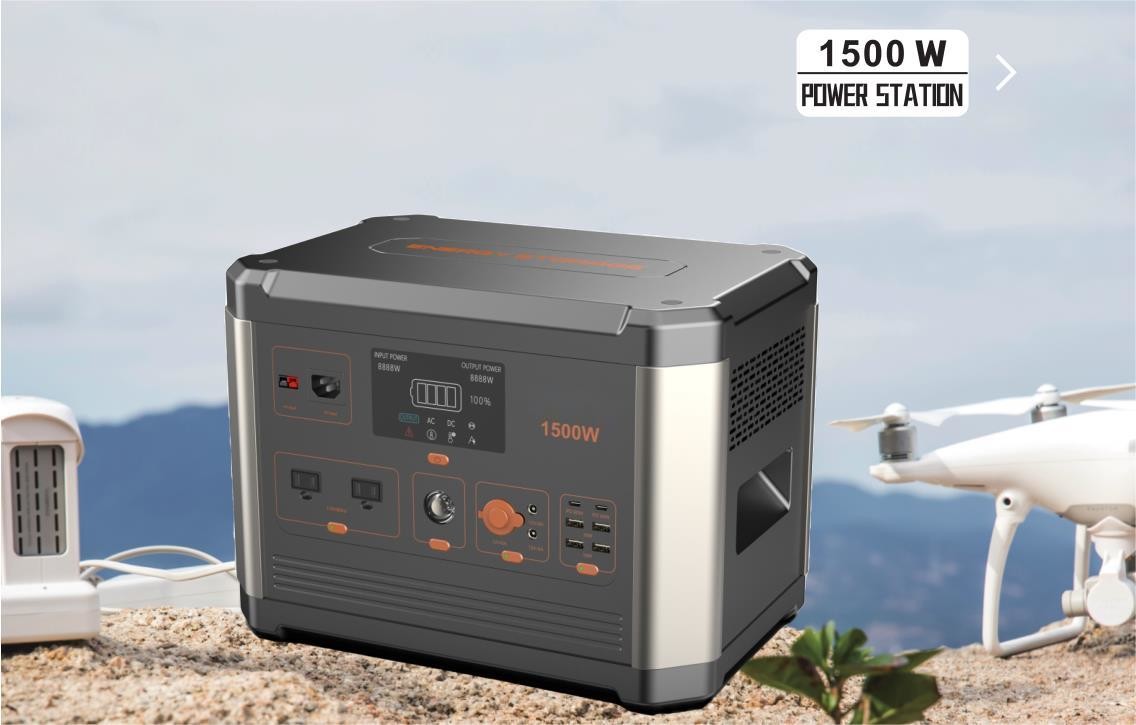

1. Specification of 1500W high capacity portable power station
| 5 input-(conversion efficiency:＞90%) | Rated Power:1500W, Peak3000W |
| 1. DC | Adapter 12V/8A | LifePO4 Battery 32700/6000mAh(16S5P) |
| 2. PV Solar | 12~50V/500W | Capacity: 1536 Wh/480000mAh |
| 3. PD fast charger | Type-C 1 & 2: PD100W(5V/3A,9V/3A,12V/3A,15V/3A,20V/5A) | Input Temp.:0~40℃(32~104℉) Output Temp.:-10~60℃(14~140℉) Storage Temp.:-20~45℃(-4~113℉) |
| 4. Car charger | 12V8A |
| 5. Hybrid charge | Support | Pure wave |
| 12 output-(conversion efficiency:＞90%) | Cycle life >2000 |
| 1. USB | 2x USB, QC18W(5V/2A,9V/2A,12V/1.5A)
2XUSB, 5V/2.4A | V0 ABS |
| 2. AC | 1x AC, 100~240V/500W(with UPS function),1X AC 1500w pure wave.
100V, 220V
| Product Size: 370*250*300mm
Package Size: 505*400*392mm
N.W.:22.5KG G.W.: 25KG |
| 3. DC | 1 x DC 12V/10A |
| 4. Type-C | 2XPD100W(5V/3A,9V/3A,12V/3A,15V/3A,20V/3A) |
| 5. Car charger | 1x12V/8A |
| 6. Light: | 1x3w lighting+SOS flicker |
|
| Accessory: | 1 x adapter+1xcable(1.2m)+1 x manual+1 x PV conver line(option) |
2. Features of 1500W high capacity portable power station
1. High capacity, high power, built-in lithium battery, long
standby time, high conversion efficiency, easy to carry.
2. Pure sine wave output, adapt to various loads, 100% rated power
resistive load (incandescent lamp, etc.), 65% rated power
capacitive load (adapter, energy-saving lamp, LED lamp, etc.), 60%
rated power The inductive load (fan, etc.).
3. The inverter part of this product is a single-phase offline
inverter.
4. This product has three USB outputs, independent OCP, OVP, short
circuit protection, and ID automatic identification function.
5. This product has a TYPE-C output, two-way PD function, rated
100W.
6. Wide-range DC input voltage charging.
7. Lighting lamp with 3W power.
8. With two DC output voltages: 12V/10A. input under-voltage
protection, output over-voltage protection, overload protection,
short-circuit protection, over-temperature protection.
FAQ for 1500W high capacity portable power station
Q: What’s the meaning of LFP or LiFePO4?
A: LiFePO4 is a chemical formula. The LiFePO4 battery is a cathode
material for a lithium-ion battery, also known as a
lithium-iron-phosphorus battery, We call it LFP for short. It
doesn’t contain cobalt and other valuable elements.
Q: Can I order a sample to check the quality?
A: Yes, sample order is welcomed.
Q: Do your products have any certifications?
A: Yes, We have full range of certificates, like CE, RoHs, FCC,
PSE, etc.
Q: What’s the production capacity of your company?
A: 10,000pcs per item every month.
Q: How long is the warranty of your products?
A: We offer one year warranty since the delivery of goods.
Q: What’s the leading time for mass order?
A: According to the quantity of the order, we will ship it for you
as soon as possible.
Q: What should be noticed when installing inverter?
A: Put the product in a place where is well ventilate,cool, dry and
water-proof. Pls do not stress and do not put foreign objects into
the inverter.Rember to turn on the inverter before turn on the
appliance.
Q: How about the charging time?
A:
